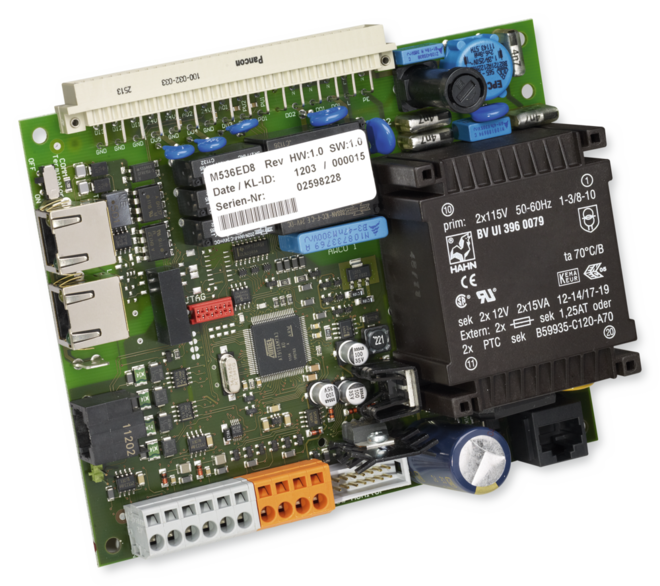

FSL-CONTROL II - Main PCB

Valve actuator FSL-CONTROL II

Straight-way valve

Pressure independent control valve

DCP-FSL II-Stand-alone

Central BMS interface

FSL-CONTROL II

Modular, stand-alone room control system, specially for decentralised ventilation systems (with bus communication as an option)

Easy-to-operate single room control system which can be combined with façade ventilation units to provide demand-based ventilation and extract ventilation and enable the control of the water-side components of the heating and cooling circuits

Plug and play solution
Main PCB for connecting the integral components
Master PCB for connecting components which are required for each room, e.g. control panels or sensors
Control valves with G½" external thread and flat seal
24 V AC or 230 V AC supply voltage
Thermoelectric valve actuator, 0 – 10 V, 24 V DC

Optional equipment and accessories

Various sensors, e.g. temperature sensor or room air quality sensor
Plug-in real time clock module (RTC) for time-dependent operating modes (5 switching points per day and 4 operating modes can be set)
Bus communication via BACnet MS/TP, Modbus RTU or LON-FTT-10 interface
Control panels (can be integrated with various frames)
Electric valve actuators
Balancing and control valves (independent of pressure)

Application

Application

Single room control system to be combined with TROX decentralised ventilation units
Control of the functions of a decentralised ventilation unit
Individual control strategies
Modular control equipment with expansion PCBs that allow for the individual adjustment of functions to the project-specific conditions
Optional expansion to allow for communication with the BMS using the LON-FTT-10, BACnet MS/TP or Modbus RTU protocol
Plug-in communication cable for easy wiring (plug and play)

Special characteristics

Modular control system with several components that can be individually combined
LON-FTT-10, BACnet MS/TP or Modbus RTU interface as an option
Master-slave combinations are available (up to 14 slaves per master)
Valves with G½" external thread and flat seal
Valves can be used for up to PN 16
Push-fit valve actuator
Automatic, energy-efficient switching between fresh air mode and secondary air mode (based on air quality, depending on unit)
Variable bypass damper for the heat recovery control
Heat recovery all year round

Nominal sizes

Depending on the unit variant the control components are either fitted inside the unit or in a separate box

Description

Components

Main PCB (control module)
Master PCB (room module)
RTC module (real time clock)
LonWorks interface
BACnet MS/TP interface card
Modbus RTU interface
VVP47.10-x.xx - straight-way valve (K_VS 0.25; 0.4; 0.63 or 1.0)
Lockshield
Thermoelectric valve actuator 24 V DC, control signal 0 – 10 V, modulating
Temperature sensors for fresh air, supply air etc. (e.g. NTC 10 kΩ)
VOC sensor
Control panel with selector switch
Alternative control panel for automatic control (e.g. in schools)

Accessories

5 m configuration cable and USB-RS485 adapter (M536ED7/M516SM3)
Wireless communication with BlueCon adapter (M546GA1)

Materials and surfaces

Casing made of galvanised steel, powder-coated RAL 9005 (unless fitted inside the decentralised ventilation unit)

Maintenance

Maintenance-free as construction and materials are not subject to wear

Technical information

Function, Technical data, Specification text, Order code, Related products

Functional description

The main PCB, which is required for each decentralised ventilation unit, controls all functions that are necessary for operation, e.g. providing the control signal for fans and actuators.

If a master PCB is added, the existing controller becomes a master controller; at least one master controller is required in each room.

Additional inputs and interfaces allow for the connection of components that are required for room control.

The RTC interface on the master PCB allows for adding a timer; the LON FTT 10, BacNet MS/TP or Modbus RTU interface allows for establishing a connection to the central BMS (by others).

Operating temperature	0 – 50 °C
Relative humidity	<90% no condensation
Air pressure	> 700 hPa
Storage temperature	–20 to 70 °C
Power consumption (depending on equipment)	4 – 10 W

Special characteristics

Modular control system with several components that can be individually combined
LON-FTT-10, BACnet MS/TP or Modbus RTU interface as an option
Master-slave combinations are available (up to 14 slaves per master)
Valves with G½" external thread and flat seal
Valves can be used for up to PN 16
Push-fit valve actuator
Automatic, energy-efficient switching between fresh air mode and secondary air mode (based on air quality, depending on unit)
Variable bypass damper for the heat recovery control
Heat recovery all year round

Materials and surfaces

Casing made of galvanised steel, powder-coated RAL 9005 (unless fitted inside the decentralised ventilation unit)

Technical data

Operating temperature: 0 to 50 °C
Relative humidity: < 90 %, no condensation
Air pressure: > 700 hPa
Storage temperature: –20 to 70 °C
Power consumption: 4 to 10 W, depending on equipment

Accessories
R Control

Variant
MA Master
SL Slave

Real time clock
No entry: none
T With RTC module

Expansion module
       No entry: none
L       With LON module
B       With BACnet MS/TP / Modbus RTU module

VOC sensor
No entry: none
V With

Supply air temperature sensor
No entry: none
Z With

Fresh air temperature sensor
No entry: none
A With

Valve – heating circuit
No entry: none
HV With

Lockshield – heating circuit
No entry: none
R With

K_VS value – heating circuit
0.25
0.40
0.63
1.00
F0.50

Valve – cooling circuit
No entry: none
KV With

Lockshield – cooling circuit
No entry: none
R With

K_KS value – cooling circuit
0.25
0.40
0.63
1.00
F0.50

Decentralised ventilation units are technically advanced products of high quality; they offer a wide range of configuration options. For specification details regarding your project please contact your nearest TROX branch or subsidiary.

Variants, Product details

FSL-CONTROL II - Main PCB

INSTALLATION DETAILS

Installation and commissioning

Control equipment and expansion modules are factory mounted and wired either in the ventilation unit or in a separate box
The control panel should be mounted approx. 1.5 m above the floor. Select an installation location where the control equipment is not affected by disturbances (e.g. solar gain, draughts)
The control equipment is factory configured, but the configuration can be changed on site (using configuration software)
We recommend adjusting the flow temperature based on the outdoor temperature in winter and based on the dew point in summer
An on-site service check by our Technical Service is recommended
