FMS

Monitoring systems Type FMS

Effective pressure sensor

Pressure sensor

Plug connection

Control panel Type BE-SEG-03

For the monitoring of volume flows

Electronic, self-powered monitoring system for fume cupboards

Easy installation, expansion and commissioning due to plug connections
Sockets for the most important connections are located on the outside of the casing
Monitoring hardware can be expanded with modules
Adaptable control panels for fume cupboards
Innovative operation to support bespoke project requirements
Control input signal for fans
Configurable monitoring functions and alarm signalling
Easy installation due to interactive EasyConnect configuration software
Power supply unit for supply voltage 90 - 250 V AC
2 control panels can be connected, e.g. for fume cupboards with sash windows on two sides

Expansion options

Expansion modules, to be mounted into or onto the base casing
Easy installation and electric connection of the monitoring system
Expansion modules can be factory mounted or fitted at a later stage
Optional monitoring of supportive flow in fume cupboards

Application

Application

Monitoring system type FMS for the electronic, self-powered monitoring of volume flow rate or face velocity in fume cupboards, fume hoods and similar components.
Easy and safe to use, providing maximum energy efficiency and data transparency
For use within enclosed rooms
Simple solution for fume cupboards with a constant volume flow rate

Equipment functions

Differential pressure monitoring
Volume flow rate monitoring
Face velocity monitoring
Monitoring of supportive flow fans, and of volume flow or differential pressure signals from external units or devices

Optical and acoustic alarms as well as alarm signalling to higher-level systems (central BMS) with BE-SEG-02 or BE-SEG-03
Complete configuration, commissioning and diagnosis with interactive software for personal computers; the computer can be connected either directly to the unit or to the room control panel
For use in laboratories, clean rooms in the pharmaceutical and semiconductor industries, operating theatres, intensive care units and offices
For new installations, retrofit and refurbishment projects
Monitoring of the sash window opening to EN 14175

Special characteristics

Extremely fast actual value measurement
Monitoring of the differential pressure or volume flow rate; face velocity monitoring as an option (only with the optional face velocity transducer VS-TRD)
Monitoring and signalling of the maximum sash opening according to EN 14175; acoustic signalling can be switched off or the duration can be limited
Connection of one or two adaptable EASYLAB control panels Type BE-SEG-03 or BE-SEG-02; suitable also for fume cupboards with sash windows on two sides
Operating mode default setting by an external unit or device using digital inputs
Monitoring functions: Monitoring value 1, monitoring value 2, deactivate monitoring function
Alarms and alarm signalling are configurable, e.g. suppressing alarms for certain operating modes

Description

Variants

FMS-1: Monitoring system with integral diaphragm pressure transducer and measuring probe
FMS-2: Monitoring system for external signals of 0 (2) to 10 V DC, e.g. from a face velocity transducer, volume flow controller or external differential pressure transducer

Parts and characteristics

Power supply unit for supply voltage 90 - 240 V AC
2 control panels can be connected, e.g. for fume cupboards with sash windows on two sides
Interactive EasyConnect software for configuration, commissioning and diagnosis of the monitoring system
Bluetooth module (BlueCON) that can be connected to the monitoring system, for wireless connection to the configuration computer

Attachments

Expansion modules are factory mounted or can be fitted at a later stage

S: EM-LIGHT-F – The monitoring system allows for switching a light on/off using the control panel. This expansion module is a wired socket for the connection of lighting. Maximum switch rating: 230 V AC 500 W.
G: EM-CPL – Mating connector for the EM-LIGHT module. If EM-LIGHT is installed, a mating connector can be supplied to allow for plugging in the lighting.
V: EM-VENT – Combined insulation piece and wire clamping bracket for digital output DO1, fan activation. The monitoring system can be used to activate or deactivate a fan. In case of 230 V AC power supply, this combined insulation piece and wire clamping bracket is provided.
D: EM-DDT – Differential pressure transducer for monitoring a supportive flow. This expansion module may be used as an additional differential pressure transducer to monitor a supportive flow fan.

Optional transducers for FMS-2

VS-TRD: Face velocity transducer
PT699: Differential pressure transducer, –100 to 100 Pa

Construction features

Electronic monitoring system with optional factory mounted expansion modules
Control electronics using a microprocessor, with configuration settings stored in EEPROM memory and hence safe in case of a power failure
Permanent function monitoring of the system and the connected sensors
Sockets for the most important connections are located on the outside of the casing
Connections for expansion modules
Differential pressure transducer with room air induction to protect the measurement point

Materials and surfaces

Casing in ABS plastic; RAL 5002

Technical information

Function, Technical data, Specification text, Order code, Related products

FMS-1

① Alarm signalling to the central BMS
② Effective pressure sensor
S1 Sash window opening, EN 14175
S2 Volume flow rate 1/2

Functional description

For fume cupboard monitoring, the electronic EASYLAB monitoring system FMS is typically installed on the roof or on the side of the fume cupboard. The supplied control panel is typically mounted on the fume cupboard side frame.

Principal functions:

Fume cupboard monitoring by internal or external differential pressure measurement, including optical or acoustic signalling, to EN 14175
The monitoring system meets the requirements of EN 14175 and is hence suitable for all fume cupboards tested to EN 14175

Monitoring strategies:

FMS-1

Equipment function – differential pressure, internal measurement: Measurement of the differential pressure at a suitable measurement point using an internal static differential pressure transducer. 2 pressure values can be monitored
Equipment function – volume flow rate, internal measurement: Measurement of the volume flow rate at a suitable measurement point using an internal static differential pressure transducer. 2 volume flow rate values can be monitored

FMS-2

Equipment function – face velocity: Measurement of the face velocity using the optional face velocity transducer VS-TRD. The velocity can be set
Equipment function – differential pressure, external measurement: Measurement of the differential pressure at a suitable measurement point using an external differential pressure transducer. 2 pressure values can be monitored
Equipment function – volume flow rate, external measurement: Monitoring of the volume flow rate by measuring the volume flow rate or differential pressure at a suitable measurement point using an external differential pressure transducer or the actual value signal from a volume flow controller. 2 volume flow rate values can be monitored

Special functions

Support of fume cupboards with supportive flow technology (optional)
Connection of fume cupboard lighting using buttons on the control panel (EM-LIGHT, optional)
Switching a fan on/off (240 V AC 2A max.)

Supply voltage	90 – 250 V AC
Power rating	Up to 13.5 V A (with maximum equipment)
Recovery time	<500 ms
Operating temperature	10 to 50 °C for operation, –10 to 70 °C for storage
Acceptable humidity	<90 % non-condensing
Switch rating of relay outputs	R1: 240 V AC 6 A, R2: 240 V AC 2 A, R3+4: 50 V 2 A
IEC protection class	II (protective insulation)
Protection level	IP 20
EC conformity	EMC to 2014/30/EU, low voltage to 2006/95/EC
Weight	0.5 kg
Dimensions (L × B × H)	159 × 136 × 65 mm

Electronic monitoring system for the demand-based monitoring of differential pressures, volume flow rates or face velocities in fume cupboards; function display to EN 14175 with optical and acoustic signalling. Monitoring strategies:

Equipment function FMS-1

Monitoring system with integral static differential pressure transducer, for the measurement and monitoring of two differential pressure values or volume flow rates

Equipment function FMS-2

Monitoring system for the connection of two external transducers using a 0 – 10 V DC signal for the measurement and monitoring of two differential pressure, volume flow rate or face velocity values.

Special characteristics

Extremely fast actual value measurement
Monitoring of the differential pressure or volume flow rate; face velocity monitoring as an option (only with the optional face velocity transducer VS-TRD)
Monitoring and signalling of the maximum sash opening according to EN 14175; acoustic signalling can be switched off or the duration can be limited
Connection of one or two adaptable EASYLAB control panels Type BE-SEG-03 or BE-SEG-02; suitable also for fume cupboards with sash windows on two sides
Operating mode default setting by an external unit or device using digital inputs
Monitoring functions: Monitoring value 1, monitoring value 2, deactivate monitoring function
Alarms and alarm signalling are configurable, e.g. suppressing alarms for certain operating modes

Materials and surfaces

Casing in ABS plastic; RAL 5002

Technical data

Supply voltage: 90 – 250 V AC
Power rating: Up to 13.5 V A (with maximum equipment)
Recovery time: <500 ms
Operating temperature: 10 to 50 °C for operation, –10 to 70 °C for storage
Acceptable humidity: < 90 %, non-condensing
Switch rating of relay outputs: R1: 240 V AC 6 A, R2: 240 V AC 2 A, R3+4: 50 V 2 A
IEC protection class: II (protective insulation)
IP protection level: IP 20
EC conformity: EMC to 2004/108/EC, low voltage to 2006/95/EC
Weight: 0.5 kg
Dimensions (L × B × H): 159 × 136 × 65 mm

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product Finder design programme.

Type
FMS Monitoring system

Variant
1 Monitoring system with integral diaphragm pressure transducer and measuring probe
2 Monitoring system for external 0 (2) to 10 V DC signals

Accessories
       Option 1: Lighting
       No entry: none
S       EM-LIGHT-F
       Option 2: Mating connector for the EM-LIGHT module
       No entry: none
G       EM-CPL
       Option 3: Combined insulation piece and wire clamping bracket for digital output DO1, fan activation
       No entry: none
V       EM-VENT
       Option 4: Differential pressure transducer for monitoring a supportive flow
       No entry: none
D       EM-DDT

Order example: FMS-1/SG

Variant	Monitoring system with integral diaphragm pressure transducer and measuring probe
Accessories	Lighting and mating connector for module EM-LIGHT

Interfaces, Dimensions and weight

FMS-1

Inputs

1 analog input

For the integration of a variable volume flow rate, differential pressure or face velocity (FMS-2 only), for 0 (2) – 10 V DC signals with configurable characteristic

2 volt-free digital inputs

Switching from monitoring value 1 to value 2
Supportive flow monitoring
Sash window opening to EN 14175

Outputs

1 analog output

For signalling the actual volume flow rate or for providing the control input signal to a supportive flow fan, for 0 (2) – 10 V DC signals with configurable characteristics

4 digital outputs

Switching output as relay NO contact, 250 V 6 A (supply voltage), for switching the fume cupboard lighting; optional connection of the fume cupboard lighting using the integral socket for the lighting in the controller. (Expansion module EM-LIGHT)
Switching output as relay changeover contact, 250 V 2 A (volt-free), for activating external units or devices
2 switching outputs as relay changeover contact, 50 V 2 A (volt-free)

Switching outputs are provided for activating supportive flow, switching between volume flow rate 1 and 2, alarm signalling

Interfaces for external signalling

The following information is available with conventional interfaces:

Actual volume flow rate with equipment function 'volume flow rate monitoring' as an analog signal (not for supportive flow)
Alarm state of the controller as digital switching contact
Digital input for switching between monitoring values V1 and V2 or for deactivating FMS

Status display

LEDs for status information and to signal errors: alarm, supply voltage with heartbeat

Additional status LEDs on the PCB: Display of the switching status of the digital inputs and outputs

Electrical connection

For details on the connecting cable core identification refer to the FMS installation and operating manual.

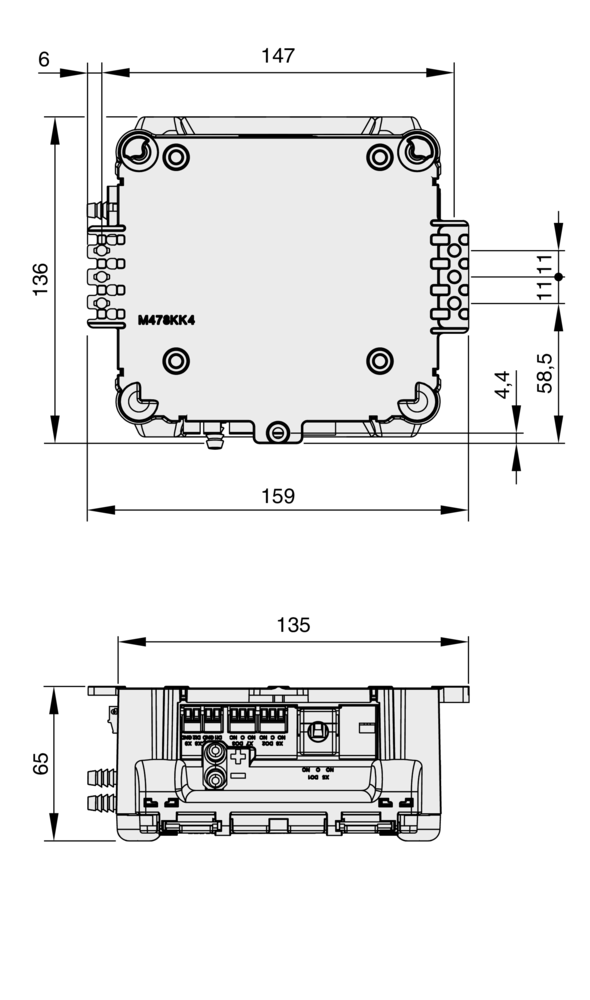

FMS monitoring system 00181015_0

Installation details

Installation and commissioning

Easy installation, expansion and commissioning due to plug connections
Sockets for the most important connections are located on the outside of the casing
Monitoring hardware can be expanded with modules

The maximum power required depends on the construction of the monitoring system. Typical constructions with different equipment result in the following values:

Monitoring system with one control panel: up to 9.5 V A
Monitoring system with two control panels: up to 13.5 V A
Monitoring system with one control panel and face velocity transducer: up to 13.5 V A

Downloads

informazioni di prodotto

Product data sheet Type FMS

Product data sheet 1.3 MB pdf

manuali d'uso

Installation manual Type FMS

FMS_IM_A00000052324_V3_2021_03_GB_en Installation manual 2 MB pdf
