The high-quality ventilation grille blends perfectly into any room.
Options

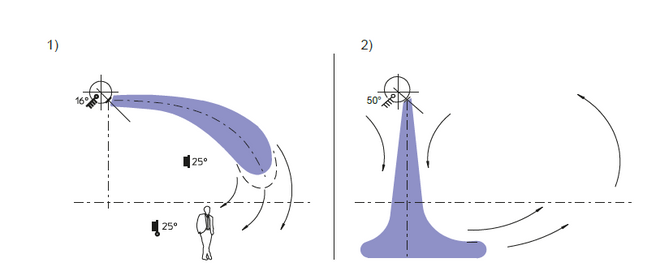

DGMOVE-VAR are air diffusers for the supply air of ventilation and air conditioning systems in which the horizontal blades are adjusted by a 24V electric actuator. They direct the supply air into the room. This allows temperature-dependent air direction control, especially in the case of notable temperature differences (ΔT) between the supply air and room air temperature. (The supply air temperature in the duct can be max. 50°C, this corresponds with the permissible permanent temperature of the actuator). Furthermore, certain grilles can be closed completely. This results in an optimised air intake, even in systems with a multi-stage air volume flow, with an almost constant supply air velocity. Some of the grilles can be closed for the heating phase. For the rest, the air jet is directed downwards as steeply as possible. Increasing the discharge velocity and the throw distance or penetration depth results in a shorter heating time. (energy saving, low thermal stratification). Ventilation grilles with adjustable blades allow for adapting the air direction control to the local conditions. The result is a mixed flow ventilation in comfort zones and industrial zones, with good overall room ventilation. Due to induction, the airflow velocity of the supply air flow decreases with increasing distance from the ventilation grille. The distance at which the airflow velocity reaches a certain defined value, e.g. 0.35 m/s, is called throw distance. The supply air flow from wall grilles that are arranged close the ceiling achieves a greater throw distance than a comparable free jet (without ceiling influence), due to the ceiling effect. Single grilles, groups of grilles and linear run sections all achieve different throw distances. In cooling mode, it is necessary to consider the jet deflection towards the occupied zone, which increases as the supply air to room air temperature difference increases and the discharge velocity decreases. In heating mode, the supply air jet is deflected towards the ceiling. This has no negative effect on the airflow velocity in the occupied zone, but it may affect the overall ventilation of the room.

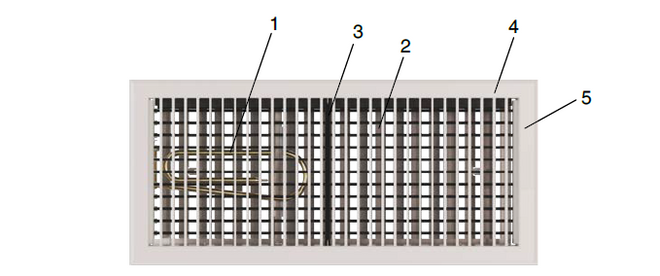

The DGMOVE-SELF ventilation grilles are supply air outlets whose horizontal blades are adjusted by a temperature indicator. This results in a self-powered, temperature-dependent air direction control for temperature differences (ΔT) between the supply air and the indoor air. Ventilation grilles with adjustable blades allow for adapting the air direction control to the local conditions. The result is a mixed flow ventilation in comfort zones and industrial zones, with good overall room ventilation. Due to induction, the airflow velocity of the supply air flow decreases with increasing distance from the ventilation grille. The distance at which the airflow velocity reaches a certain defined value, e.g. 0.35 m/s, is called throw distance. The supply air flow from wall grilles that are arranged close the ceiling achieves a greater throw distance than a comparable free jet (without ceiling influence), due to the ceiling effect. Single grilles, groups of grilles and linear run sections all achieve different throw distances. In cooling mode, it is necessary to consider the jet deflection towards the occupied zone, which increases as the supply air to room air temperature difference increases and the discharge velocity decreases. In heating mode, the supply air jet is deflected towards the ceiling. This has no negative effect on the airflow velocity in the occupied zone, but it may affect the overall ventilation of the room.
Nominal sizes | 300 x 100 - 1200 x 250 mm |
Minimum volume flow rate | 23 – 275 l/s or 163 – 912 m³/h |
Maximum volume flow rate, with LWA max. 40 dB(A) without attachments | 178 – 1000 l/s or 640 – 3603 m³/h |
Supply air temperature | -12 to +4 K |
Geometric free area Ageo [m2]
H/B | 300 | 400 | 500 | 600 | 750 | 900 | 1050 | 1200 |
100 | 0.023 | 0.031 | 0.039 | 0.046 | 0.062 | 0.069 | 0.069 | 0.069 |
150 | 0.035 | 0.046 | 0.058 | 0.069 | 0.087 | 0.104 | 0.104 | 0.104 |
200 | 0.046 | 0.062 | 0.077 | 0.092 | 0.123 | 0.139 | 0.139 | 0.139 |
250 | 0.058 | 0.077 | 0.096 | 0.116 | 0.144 | 0.173 | 0.173 | 0.173 |
Effective air inflow area supply air Aeff [m2]
H/B | 300 | 400 | 500 | 600 | 750 | 900 | 1050 | 1200 |
100 | 0.022 | 0.030 | 0.037 | 0.045 | 0.060 | 0.060 | 0.067 | 0.067 |
150 | 0.034 | 0.045 | 0.056 | 0.067 | 0.084 | 0.101 | 0.101 | 0.101 |
200 | 0.045 | 0.060 | 0.075 | 0.090 | 0.120 | 0.120 | 0.135 | 0.135 |
250 | 0.057 | 0.075 | 0.094 | 0.112 | 0.141 | 0.169 | 0.169 | 0.169 |
Correction factors
Blade arrangement | straight | 44° | 84° | 110° | 140° | opposing |
Air pattern angle β | 20° | 60° | 80° | 90° | 180° | 20° |
Distance Dh horizontal air discharge | 0.10 x RT | 0.29 x RT44 | 0.42 x RT84 | 0.5 x RT110 | – | 0.10 x RTg |
Distance Dv vertical air discharge | 0.25 x RT | 0.76 x RT44 | 1.07 x RT84 | 1.25 x RT110 | 3.26 x RT140 | 0.25 x RTg |
Room depth | RT Diagr. 1 and 2 | RT44 = 0.77 x RT | RT84 = 0.56 x RT | RT110 = 0.42 x RT | RT140 = 0.35 x RT | RTg = 1.3 x RT |
Factors for the eff. discharge velocity veff | veff = 1.0 | veff 44° = 1.18 | veff 84° = 1.35 | veff 110° = 1.52 | veff140° = 1.97 | veff opp = 1.97 |
Calculation example Given data
Room length RL = 7.0 m, room height RH = 5.5 m, installation height EH = 4.0 m,
Air volume flow V = 1080 m³/h, or 300 l/s, undisturbed air pattern, blade position 84° diverging
Required
Grille dimensions B × H, room depth RT and RT84, discharge velocity veff, stat. pressure difference ∆ps,
Sound power level LwA, LwNC, LwNR
Solution
From RT84 = 0.56 × RT follows RT = RT84/0.56 = 7/0.56 ~13 m. Using this value in diagram 1, on the previous page, results in: 1 pc DGMOVE-V,
600 × 200 mm, veff = 3.3 m/s. From EPF (Easy Product Finder) follows: ∆ps = 4 Pa, but because of its divergence 84°, it must be corrected. Thus ∆ps84 = 3.3 × 1.50 = 4.95 m/s ⇒ 8 Pa, sound power level LwA = 34 + 3 = 37 dB(A), LwNC = 37 - 4 = 33,
LwNR = 37 - 2 = 35. For more detailed LwA and Δps data, see EPF (Easy Product Finder)
| DGMOVE | – | R | – | – | V | – | SELF | – | BL | / | 600 x 200 | / | L34 | / | AG | / | / | 44 | / | P1 - RAL 9016 | ||
| | | | | | | | | | | | | | | | | | | | | | | | | |||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
No entry: installation into walls, sills or ducts
R Installation into circular ducts (large duct diameters)
RA Installation into circular ducts with small Ø and additional bend (small duct diameters)
No entry: profile 25 × 40 mm with bevelled edge
F01 Profile 5 × 40 mm without bevelled edge
F02 Profile 10 × 40 mm without bevelled edge
F03 Profile 10 × 40 mm with bevelled edge
F04 Profile 15 × 40 mm without bevelled edge
F05 Profile 15 × 40 mm with bevelled edge
F06 Profile 20 × 40 mm without bevelled edge
F07 Profile 20 × 40 mm with bevelled edge
F08 Profile 25 × 40 mm without bevelled edge
F09 Profile 30 × 40 mm with bevelled edge
F10 Profile 35 × 40 mm with bevelled edge
F11 Without edge
V Vertical front blade
5 Adjustment
VAR electric variable adjustment
SELF thermally self-powered adjustment
No entry: without ball impact protection
BS With ball impact resistance without fixing holes
BL With ball impact protection with fixing holes
8 Actuator/temperature indicator
Only with VAR adjustment
L1 External actuator on the left, concealed supply
L2 Internal actuator on the left, concealed supply
L3 External actuator on the left, visible supply
L4 Internal actuator on the left, visible supply
R1 External actuator on the right, concealed supply
R2 Internal actuator on the right, concealed supply
R3 External actuator on the right, visible supply
R4 Internal actuator on the right, visible supply
Only with SELF adjustment
L34 Temperature indicator left, 10 - 34 °C
L50 Temperature indicator left, 10 - 50 °C
R34 Temperature indicator right, 10 - 34 °C
R50 Temperature indicator right, 10 - 50 °C
Only suitable for supply air
No entry: without attachment (front grille only)
AG Damper blade, opposed action blades
AS Hit and miss damper (parallel slide damper)
AB Skimming plate
SAS Slanted hit and miss damper
10 Fixing
No entry: countersunk holes in front border
NO No factory-fitted fixing option
11 Air discharge
No entry: diverging 0°
44 diverging 44°
84 diverging 84°
110 diverging 110°
GEG Opposed
12 Surface
No entry: Galvanised steel
P0 Powder-coated, RAL 9010 (pure white), GU 50
P1 Powder-coated, specify RAL CLASSIC colour, gloss level
PS powder-coated, specify NCS colour and gloss level
Order example: DGMOVE-R-V-SELF-BL/600×200/L34/AG/44/P1-RAL9016
| Type | DGMOVE - Diffusion grille with adjustment |
| Constrution | Installation into circular ducts (large duct diameters) |
| Front border | Profile 25 x 40 mm with bevelled edge |
| Blade arrangement | Vertical front blade |
| Adjustment | thermally self-powered adjustment |
| Ball impact protection | With ball impact protection with fixing holes |
| Nominal size [mm] | Width 600, height 200 |
| Actuator/temperature indicator | Temperature indicator left, 10 - 34 °C |
| Attachment | Damper unit, opposed action blades |
| Air discharge | diverging 44° |
| Surface | Powder-coated, RAL 9016 (traffic white) |
